FORMIC Acid (HCOOH Acid)

FORMIC Acid is a handy tool for preparing recipes to mix, dilute, neutralize HCOOH acid as well as get a quick safety and first aid directions

HCOOH Home

HCOOH Home

The Home navigation screen provides access to all modules included in the app.

  1. The "HCOOH Dilution" module allows the preparation of desired diluted acid volume from concentrated acid.
  2. The "Neutralization" module allows the calculation of the required quantity of various alkaline to neutralize the given volume of HCOOH acid to a pH of 7.
  3. The "Neutralization - Partial" module allows the calculation of the required quantity of various alkaline to neutralize the given volume of HCOOH acid to a reduced concentration.
  4. The "Concentration vs pH" module allows the calculation of the pH value corresponding to a given concentration and vise versa, calculates the concentration value corresponding to a desired pH value.
  5. The "Solution Preparation" module allows the calculation of the required acid volume from a given concentration to mix a solution with a given "Molarity/Normality"
  6. The "HCOOH Properties" screen gives a general information related to the product phisycal and chemical properties.
  7. The "First Aid" screen provide guidance to basic first aid steps taken when exposed to uncontrolled HCOOH environment.
  8. The "Units" screen allows user to set preferred calculation units
  9. The "Help" screen allows access to this help document
  10. The "About HCOOH Acid" screen allows access to developer website, App rating and reporting bugs.

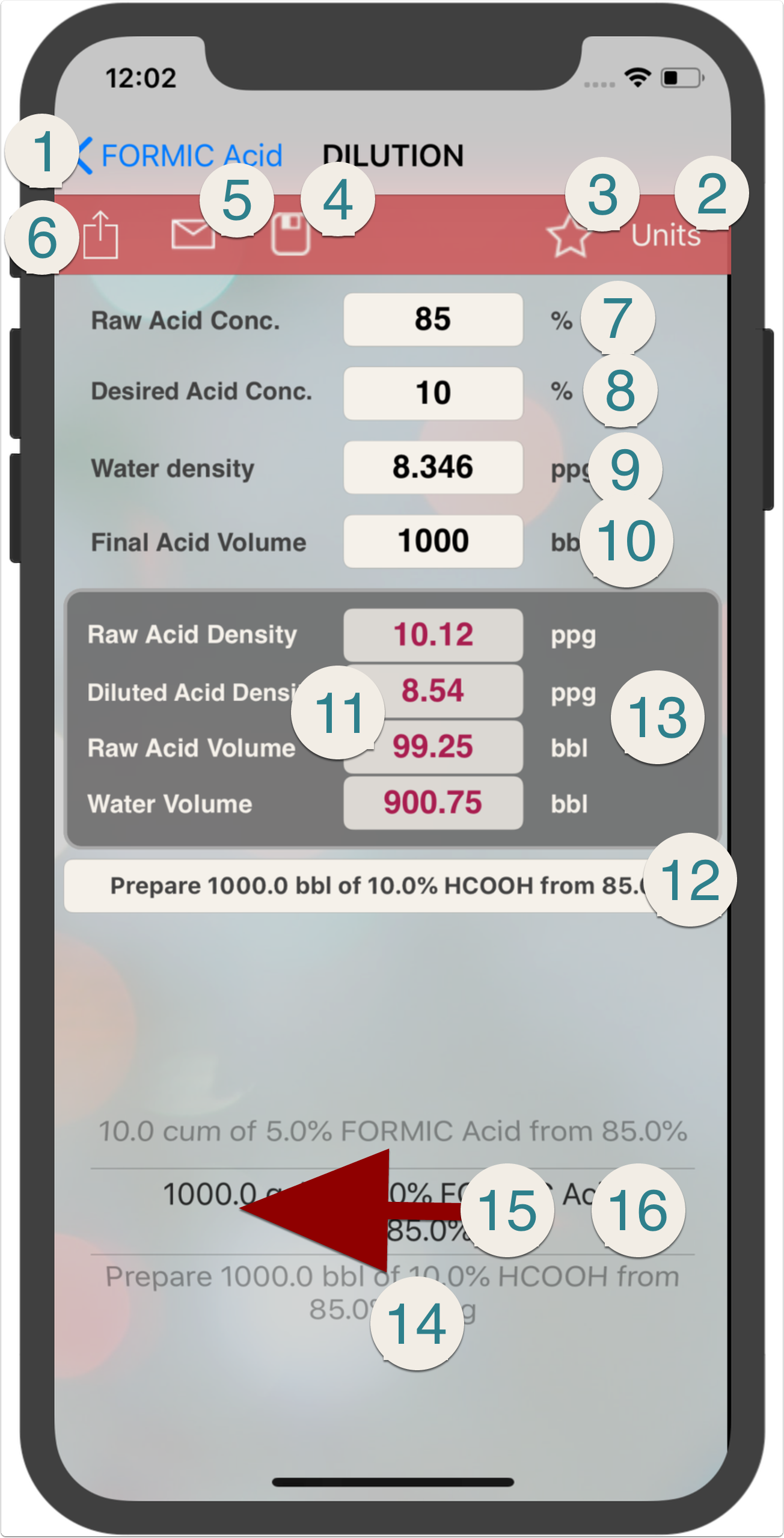

HCOOH Dilution

HCOOH Dilution
  1. Return to "Home" screen
  2. Access "Units" screen to change prefered units
  3. Recall the saved (preferred) units
  4. Save Calculation
  5. e-mail calculation inputs and results
  6. Share screen capture
  7. Enter raw FORMIC acid concentration
  8. Enter desired FORMIC acid concentration
  9. Enter water density (water used for dilution)
  10. Enter desired diluted acid volume
  11. Output screen showing:
    • Initial acid density at 20 ºC
    • Desired acid density at 20 ºC
    • Raw acid volume
    • Required water volume for diluting the acid
  12. Name of saved calculation or type in a name to save calculation under (?)
  13. Double tap the results window to copy results to clipboard
  14. Rotate pickerview to revert back to a saved calculation
  15. Swipe left on the pickerview to delete the selected record
  16. Double tap the pickerview to load the selected calculation. This is required when you recall the preferred units (bullet 3) and want to load back the saved caculation selected in the pickerview.

(?) each record has a case record  name and a ID name. Typically, both are set by the app to be identical. If user wand to identify the record with a different record name that shoes on the pickerview, please follow the below steps:

  1. Complete all data entries (from step 7 to 10 above)
  2. Tap anywhere on the screen to process calculation
  3. Type the record name in textbox (12)
  4. Press save button (4)

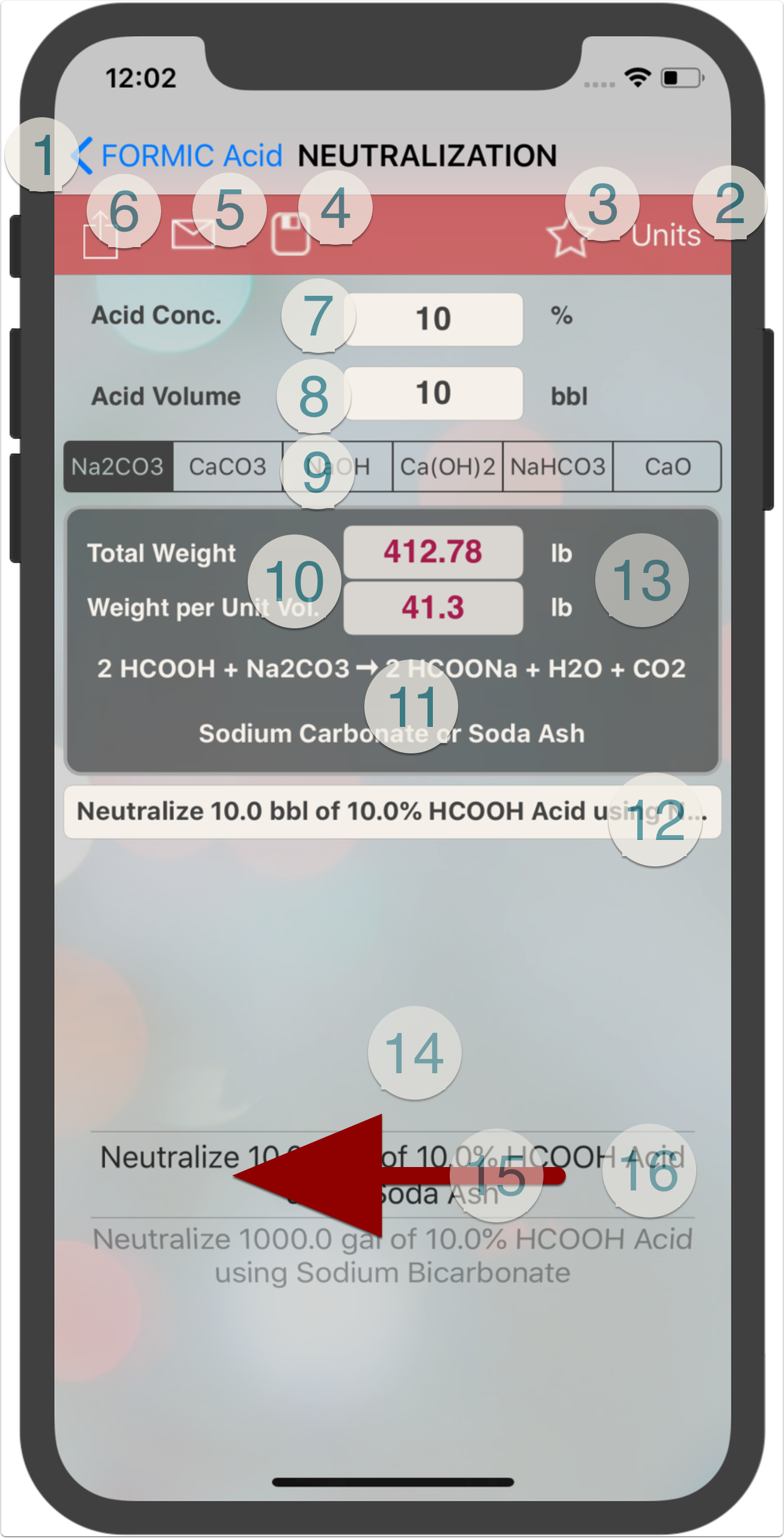

FORMIC Neutralization (Neutralize FORMIC Acid to a ph of 7)

FORMIC Neutralization (Neutralize FORMIC Acid to a ph of 7)
  1. Return to "Home" screen
  2. Access "Units" screen to change prefered units
  3. Recall the saved (preferred) units
  4. Save Calculation
  5. e-mail calculation inputs and results
  6. Share screen capture
  7. Enter FORMIC acid concentration
  8. Enter FORMIC acid volume to be neutralized
  9. Select the neutralization agent to be used (☆)
  10. The calculation output screen showing:
    • Mass of the selected neutralizer used to neutralize a unit volume of acid
    • Total Mass of the selected neutralizer used to neutralize a entire volume of acid
  11. The chemical reaction equation and the name of neutralizer will appear here once it is selceted in step (9)
  12. Name of saved calculation or type in a name to save calculation under(??)
  13. Double tap the results window to copy results to clipboard
  14. Rotate pickerview to revert back to a saved calculation
  15. Swipe left on the pickerview to delete the selected record
  16. Double tap the pickerview to load the selected calculation. This is required when you recall the preferred units (step 3) and want to load back the saved caculation selected in the pickerview.

(?) some neutralizers have an extremely fast and exothermal reaction with a CO2 gas release when added to the acid.  The commun neutralizers used in on comertial basis are sodium bicarbonate, soda ash or lime. Safety considerations shall be well taken as per each product directives.

(??) each record has a case record  name and a ID name. Typically, both are set by the app to be identical. If user wand to identify the record with a different record name that shoes on the pickerview, please follow the below steps:

  1. Complete all data entries (from step 7 to 9 above)
  2. Tap anywhere on the screen to process calculation
  3. Type the record name in textbox (12)
  4. Press save button (4)

FORMIC Neutralization - Partial (Neutralize FORMIC Acid to a Required Concentration)

FORMIC Neutralization - Partial (Neutralize FORMIC Acid to a Required Concentration)
  1. Return to "Home" screen
  2. Access "Units" screen to change prefered units
  3. Recall the saved (preferred) units
  4. Save Calculation
  5. e-mail calculation inputs and results
  6. Share screen capture
  7. Enter FORMIC acid concentration
  8. Enter Required FORMIC neutralized concentration
  9. Enter FORMIC acid volume to be neutralized
  10. Select the neutralization agent to be used (☆)
  11. The calculation output screen showing:
    • Mass of the selected neutralizer used to neutralize a unit volume of acid
    • Total Mass of the selected neutralizer used to neutralize a entire volume of acid
  12. The chemical reaction equation and the name of the neutralizer will appear here once it is selceted in step (10)
  13. Name of saved calculation or type in a name to save calculation under(??)
  14. Double tap the results window to copy results to clipboard
  15. Rotate pickerview to revert back to a saved calculation
  16. Swipe left on the pickerview to delete the selected record
  17. Double tap the pickerview to load the selected calculation. This is required when you recall the preferred units (step 3) and want to load back the saved caculation selected in the pickerview.

(?) some neutralizers have an extremely fast and exothermal reaction with a CO2 gas release when added to the acid.  The commun neutralizers used in on comertial basis are sodium bicarbonate, soda ash or lime. Safety considerations shall be well taken as per each product directives.

(??) each record has a case record  name and a ID name. Typically, both are set by the app to be identical. If user wand to identify the record with a different record name that shoes on the pickerview, please follow the below steps:

  1. Complete all data entries (from step 7 to 10 above)
  2. Tap anywhere on the screen to process calculation
  3. Type the record name in textbox (13)
  4. Press save button (4)

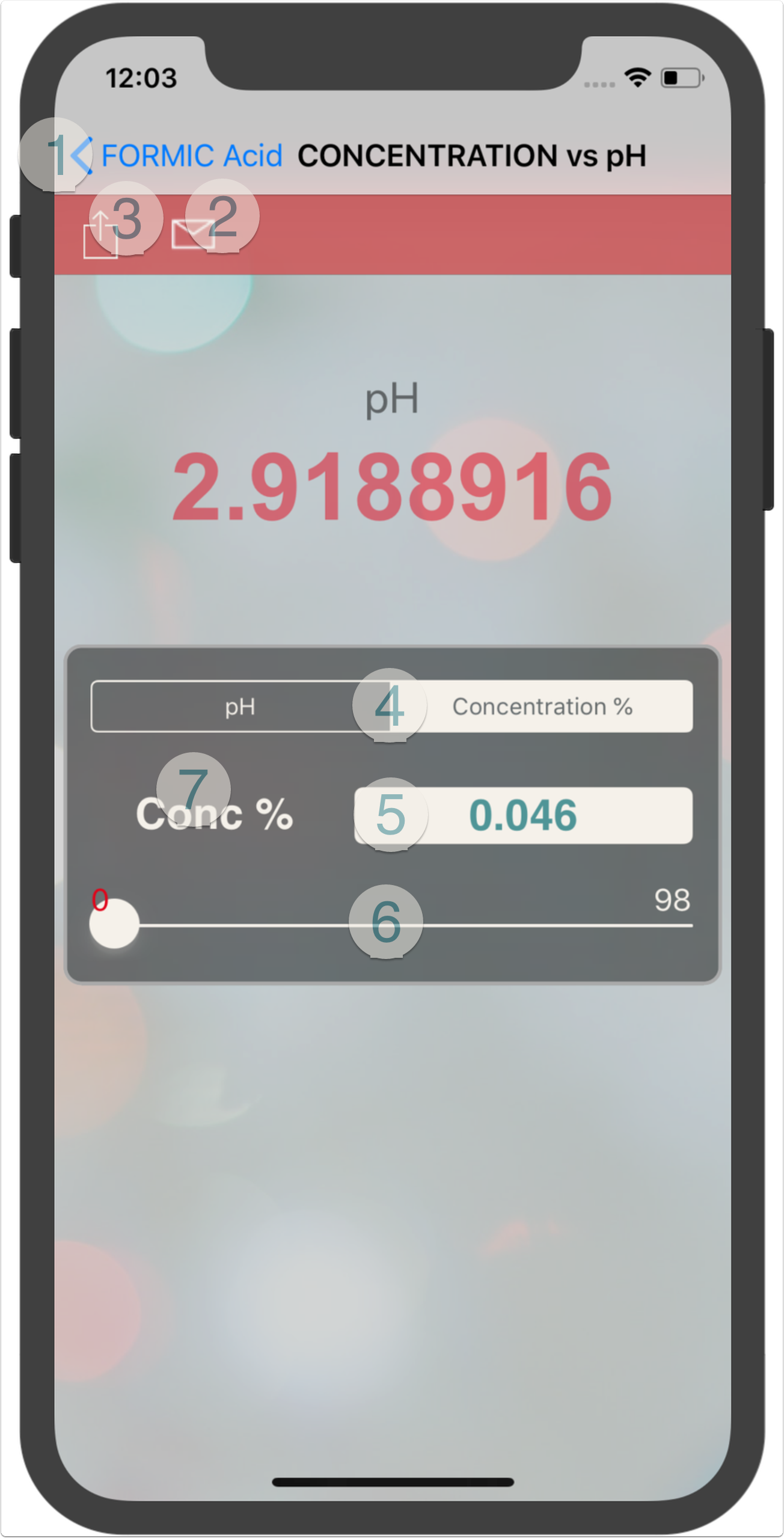

FORMIC Concentration versus pH

FORMIC Concentration versus pH
  1. Return to "Home" screen
  2. e-mail calculation inputs and results
  3. Share screen capture
  4. Select either to input FORMIC Acid concentration or fluid pH. According to the selection, the input textfield and the slider will be configured either to input FORMIC acid concentration value or FORMIC fluid pH value.
  5. According to the selection in step (4), the input textfield  will be configured either to input FORMIC acid concentration value or FORMIC fluid pH value.
  6. According to the selection in step (4), the slider will be configured either to input FORMIC acid concentration value or FORMIC fluid pH value (☆)

(☆) When "pH" is selected in step (4), the slider minimum value will be 0 pH and the maximum value will be 7 pH. When "Concentration %" is selected in step (4), the slider minimum value will be 0.000001 % and the maximum value will be 4 %. The pH value of FORMICacid concentrations higher than 3.65 % is typically 0.

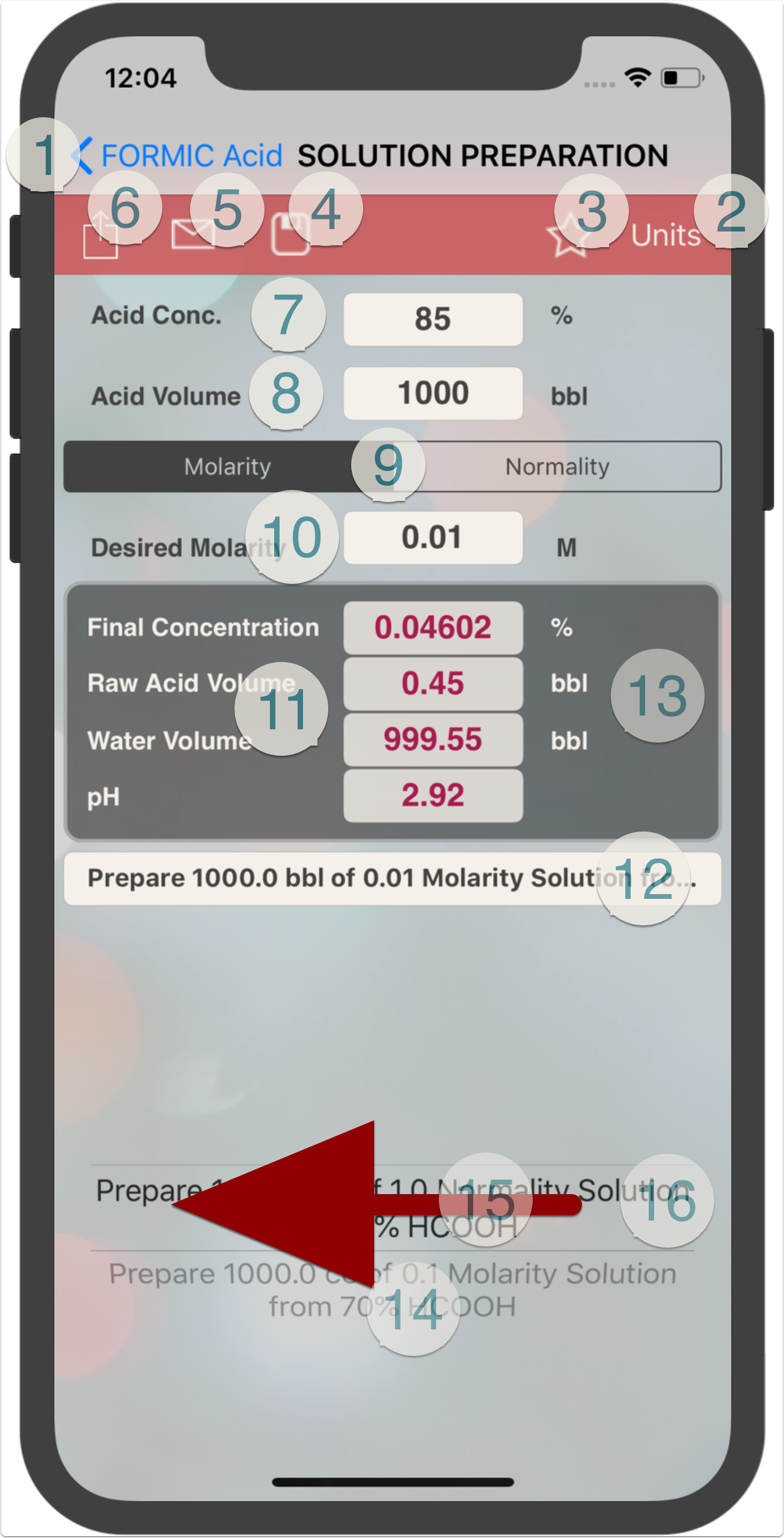

HCOOH Solution Preparation

HCOOH Solution Preparation
  1. Return to "Home" screen
  2. Access "Units" screen to change prefered units
  3. Recall the saved (preferred) units
  4. Save Calculation
  5. e-mail calculation inputs and results
  6. Share screen capture
  7. Enter FORMIC acid concentration
  8. Enter FORMIC acid solution volume required
  9. Select the solution unit measurment  "Molarity or Normality"(☆)
  10. Enter the desired Molarity/Normality value
  11. The calculation output screen showing:
    • Volume of raw acid needed
    • Volume of water needed
    • The equivalent acid concentration
    • The equivalent acid pH value
  12. Name of saved calculation or type in a name to save calculation under (??)
  13. Double tap the results window to copy results to clipboard
  14. Rotate pickerview to revert back to a saved calculation
  15. Swipe left on the pickerview to delete the selected record
  16. Double tap the pickerview to load the selected calculation. This is required when you recall the preferred units (step 3) and want to load back the saved caculation selected in the pickerview.

(?) Normality is similar in concept to molarity. Where molarity (M) represents the concentration of an ion or compound in solution, normality (N) represents the molar concentration only of the acid component (usually the H+ ion in an acid solution). Typically N = (M)(number of hydrogen or hydroxide ions).

(??) each record has a case record  name and a ID name. Typically, both are set by the app to be identical. If user wand to identify the record with a different record name that shoes on the pickerview, please follow the below steps:

  1. Complete all data entries (from step 7 to 10 above)
  2. Tap anywhere on the screen to process calculation
  3. Type the record name in textbox (12)
  4. Press save button (4)

HCOOH Units

HCOOH Units
  1. Go to Home screen
  2. Select "Volume" unit
  3. Select "Weight/mass" unit
  4. Select 'Density" unit
  5. Cick on "Save" to save the selected units
  6. the saved units are displayed in the "Saved Units" textbox to confirm correct selection (when saving the new units selection, the screen will move back to the screen from which the "Units" was called)

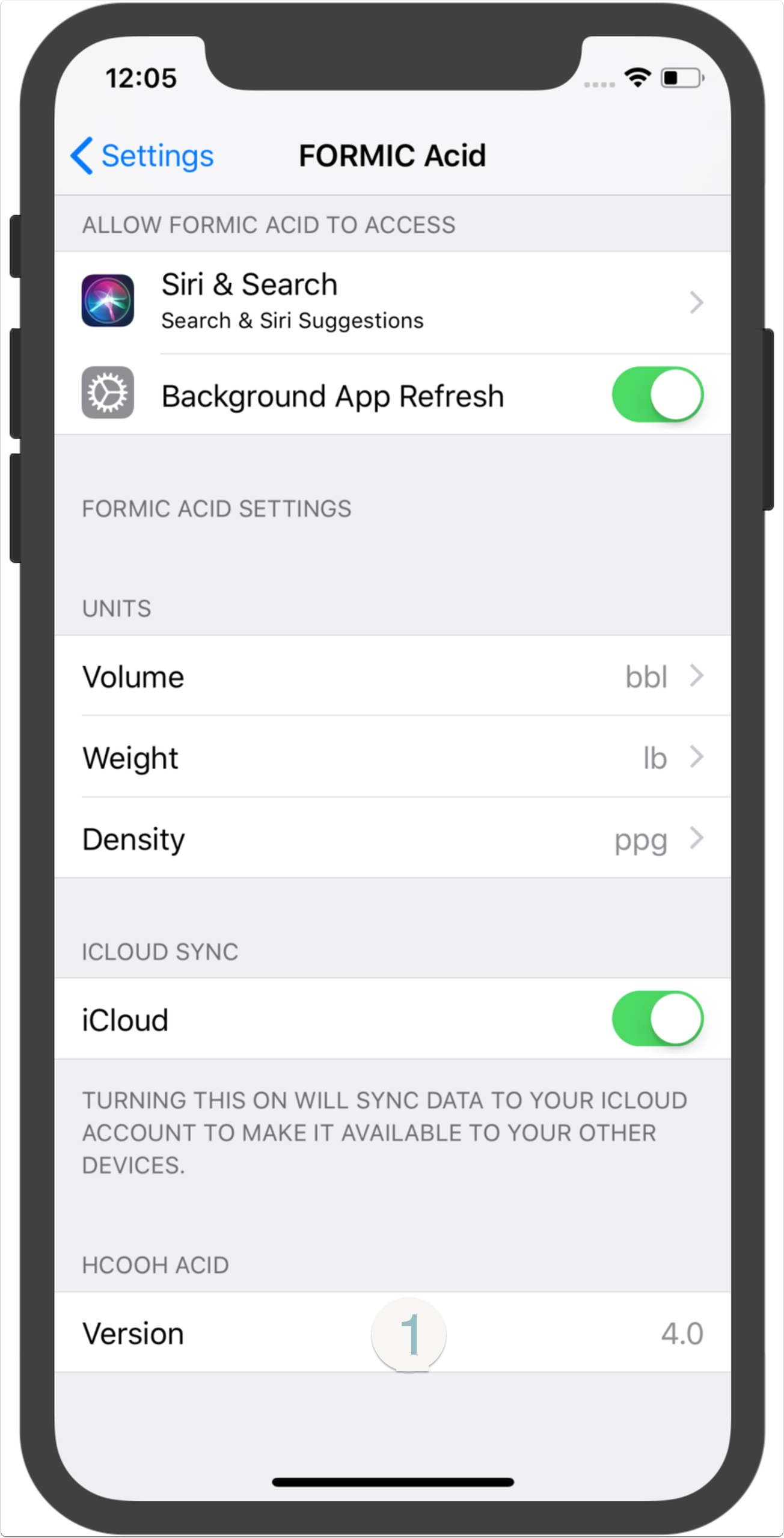

FORMIC Acid Settings

FORMIC Acid Settings

Go to "Settings" screen and select FORMIC Acid Settings (1)

FORMIC Acid Settings

FORMIC Acid Settings
  1. Set the FORMIC Acid restrictions and accessability here. "Background App Refresh" will be visible if "iCloud" option below is ON.
  2. User can select the prefered units here.
  3. Turning "iCloud" ON allows syncing data to the user's icloud account to make it available to other devices.

FORMIC Acid Version
